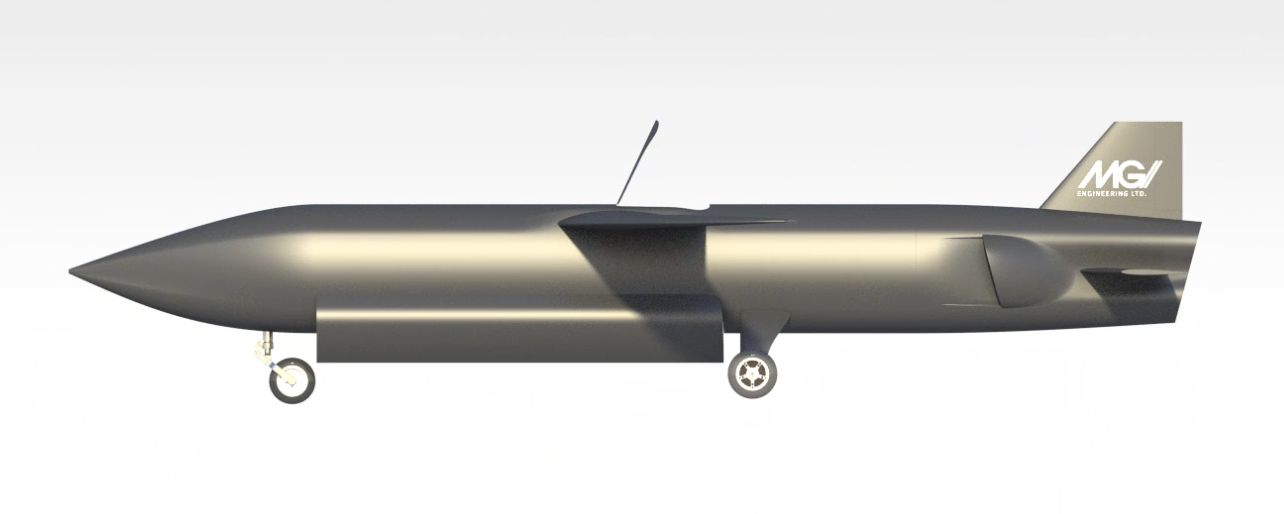

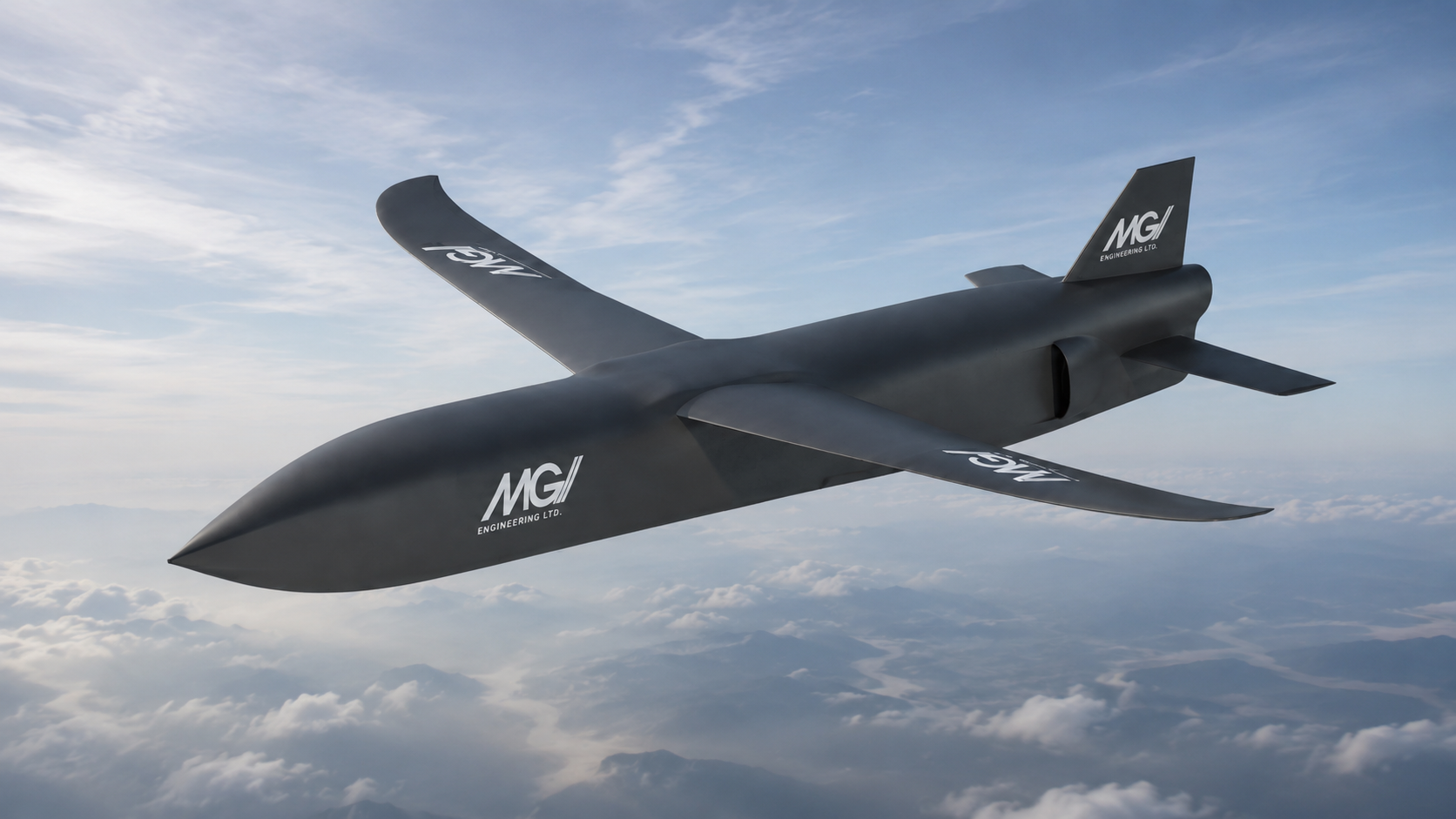

MGI T010b TigerShark II

  • MGI T010b TigerShark II

MGI T010b TigerShark II The TigerSharkII is an Ultra-Low-Cost medium range Autonomous Collaborative Platform (ACP). The TigerShark II is a development of MGI’s successful TigerShark Long Range OWE. Used as both a Test and Evaluation (T&E) technology demonstrator and developed into a ultra-low cost ACP platform, using autonomy and artificial intelligence (AI), the TigerShark II program pioneers low-cost tactical unmanned aerial system (UAS) technology and collaborative manned-unmanned capability including teaming operations. MGI T010b TigerShark II The TigerSharkII is an Ultra-Low-Cost medium range Autonomous Collaborative Platform (ACP). The TigerShark II is a development of MGI’s successful TigerShark Long Range OWE. Used as both a Test and Evaluation (T&E) technology demonstrator and developed into a ultra-low cost ACP platform, using autonomy and artificial intelligence (AI), the TigerShark II program pioneers low-cost tactical unmanned aerial system (UAS) technology and collaborative manned-unmanned capability including teaming operations.

At a Glance

TigerShark II is an ultra-low-cost, medium-range Autonomous Collaborative Platform (ACP) evolved from MGI’s TigerShark long-range OWE. Designed for Test & Evaluation and collaborative unmanned operations, it uses autonomy and AI to advance tactical UAS development, manned-unmanned teaming and scalable low-cost air capability.

Specifications

Dimensions

Length: 5.5m

Wingspan: 5.75m

Empty Weight: 250kg

MTOW: 1000kg

Power Plant: Twin 1.5-2kN Gas Turbine (3-4kN total thrust)

Performance

Range: 1000km

Max Speed: 750km/hr (208m/s, Mach 0.61)

Cruise Speed: 550km/hr (150m/s, Mach 0.45)

Minimum Height: <15m

Maximum Height: 10,000m

Manouverability: -2 to +6g

Payload

Max Payload: 300kg total

Internal: 300kg

External: 2x Wing Mounts or 2 x Fuselage Mounts 300kg total

Costs

£1-1.5M based on avionics/mission requirements
